Project Description

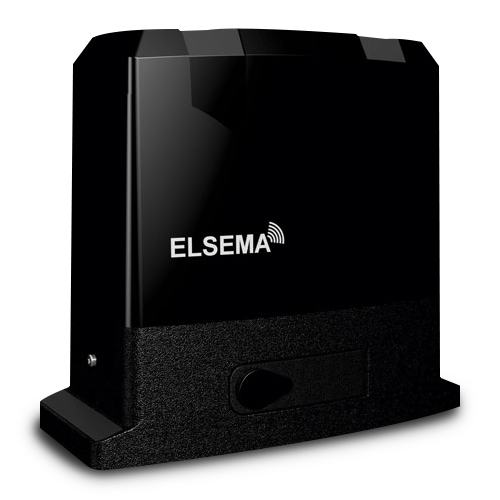

AUTOMATIC SLIDING GATE MOTOR KITS

South Pacific Electronics manufactures and installs automatic gate operators for all types of sliding gates. Our kits are controlled with state of the art one touch LCD control and all metal gearbox designed by Elsema Automatic Gates Australia for a very fast, efficient, smooth and quiet operating motor. The optional battery backup and solar power allows operation in areas where it is difficult to use mains power and allows continuous operation even during power failures.

Features

  • Motor Soft Start and Soft Stop
  • One touch control and setup
  • Speed and Force Adjustment
  • Auto Profiling with Intelligent Technology
  • LCD Technology for Easy Installation and Servicing
  • Energy Saving Mode to Reduce Running Costs
  • Easy to release motor clutch with Key Lock for Manual Operation
ENQUIRE NOW

Easy Setup Installation

Up To 2000kg Gate

Battery Backup

Durable & Quiet Gearbox

Product Models & Accessories

Sliding gate motor kit
Enquire

iS600 Sliding Gate Kit

Easy setup with one-touch-control. Automatic learning. Contactless Limits.

Motor voltage: 24VDC
Supply voltage: 240VAC
Maximum gate weight: 600kg on level ground
Gate type: Domestic
Max absorbed power: 80 Watts
Gate Speed: 15 metres per minute
Duty cycle: 60% over 12 min

  • Gate operator with Mounting Base, Bolts and Screws
  • Intelligent LCD Controller Card with built-in 2-channel, 433MHz Receiver
  • 3 x Keyring Remote Controls
  • 4 Metres Nylon Rack
iS900 Sliding Gate Kit
Enquire

iS900 Sliding Gate Kit

Engineered for fast speed and durable gearbox. Superior quality.

Motor voltage: 24VDC
Supply voltage: 240VAC
Maximum gate weight: 900kg on level ground
Gate type: Domestic
Max absorbed power: 120 Watts
Gate Speed: 15 metres per minute
Duty cycle: 60% over 12 min

  • Gate operator with Mounting Base, Bolts and Screws
  • Intelligent LCD Controller Card with built-in 2-channel, 433MHz Receiver
  • 3 x Keyring Remote Controls
  • 4 Metres Nylon Rack
High speed sliding gate
Enquire

iS1200 Sliding Gate Kit

Can pull gates up to 800 Kg. Built for high duty cycle operation.

Motor voltage: 24VDC
Supply voltage: 240VAC
Maximum gate weight: 800kg on level ground
Gate type: Industrial
Max absorbed power: 120 Watts
Gate Speed: 27 metres per minute
Duty cycle: 100%

  • Gate operator with Mounting Base, Bolts and Screws
  • Intelligent LCD Controller Card with built-in 2-channel, 433MHz Receiver
  • 3 x Keyring Remote Controls
  • 4 Metres Nylon Rack
High speed sliding gate motor kit with Inverter
Enquire

iS2000 Sliding Gate Kit

Can pull gates up to 2 tonnes. Inverter technology for super fast operation.

Motor voltage: 240VAC 3-phase
Supply voltage: 240VAC
Maximum gate weight: 2000kg on level ground
Gate type: Industrial
Max absorbed power: 750 Watts
Gate Speed: 38 metres per minute
Duty cycle: 100%

  • Gate operator with Mounting Base, Bolts and Screws
  • Intelligent LCD Controller Card with built-in 2-channel, 433MHz Receiver
  • 3 x Keyring Remote Controls
  • 4 Metres Nylon Rack
Sliding gate motor
Enquire

iS600

Designed to last. All steel gearbox. Very High security code.

Motor voltage: 24VDC
Supply voltage: 240VAC
Maximum gate weight: 600kg on level ground
Gate type: Domestic
Max absorbed power: 80 Watts
Gate Speed: 15 metres per minute
Duty cycle: 60% over 12 min

Steel Gear Rack
Enquire

Steel Rack

Strong, rigid and designed for outdoor weather conditions. Long lasting and corrosion free racks for sliding gates.

Nylon rack
Enquire

Nylon Rack

Specially designed for outdoor weather conditions. Long lasting and corrosion free racks for sliding gates.

Sliding Gate Motor Kit Includes

  • Gate operator with Mounting Base, Bolts and Screws
  • Intelligent LCD Controller Card with built-in 2-channel, 433MHz Receiver
  • 3 x Keyring Remote Controls
  • 4 Metres Nylon Rack

Optional Upgrades

  1. Extra Keyring Remote Controls
  2. Photoelectric Beam for extra security and safety
  3. Battery Backup, Charger, 2 x 12 Volt 2.6 AH Deep Cycle Battery
  4. Solar-20, 20 Watt Solar Panel, 10 A Charger, 2 x 12 Volts 7.0AH Deep Cycle Battery
  5. Solar-40, 40 Watt Solar Panel, 10 A Charger, 2 x 12 Volts 15AH Deep Cycle Battery
Model iS600 iS900 iS1200 iS2000
Motor voltage 24VDC 24VDC 24VDC 240VAC 3-phase
Supply voltage 240VAC 240VAC 240VAC 240VAC
Maximum gate weight 600kg on level ground 900kg on level ground 800kg on level ground 2000kg on level ground
Gate type Domestic Domestic Industrial Industrial
Max absorbed power 80 Watts 120 Watts 120 Watts 750 Watts
Gate Speed 15 metres per minute 15 metres per minute 27 metres per minute 38 metres per minute
Duty cycle 60% over 12 min 60% over 12 min 100% 100%
Installation Instructions Download Download Download Download
